Description

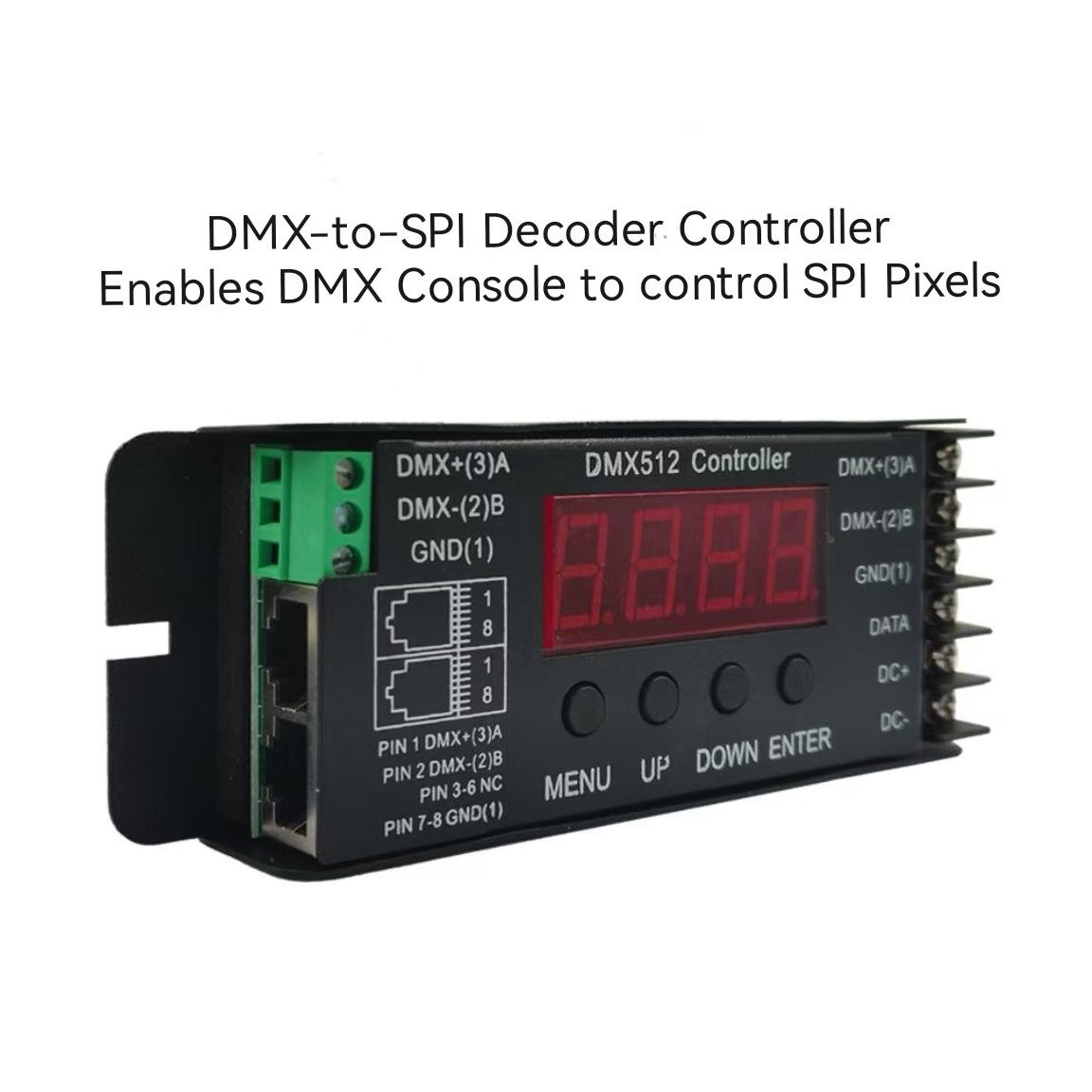

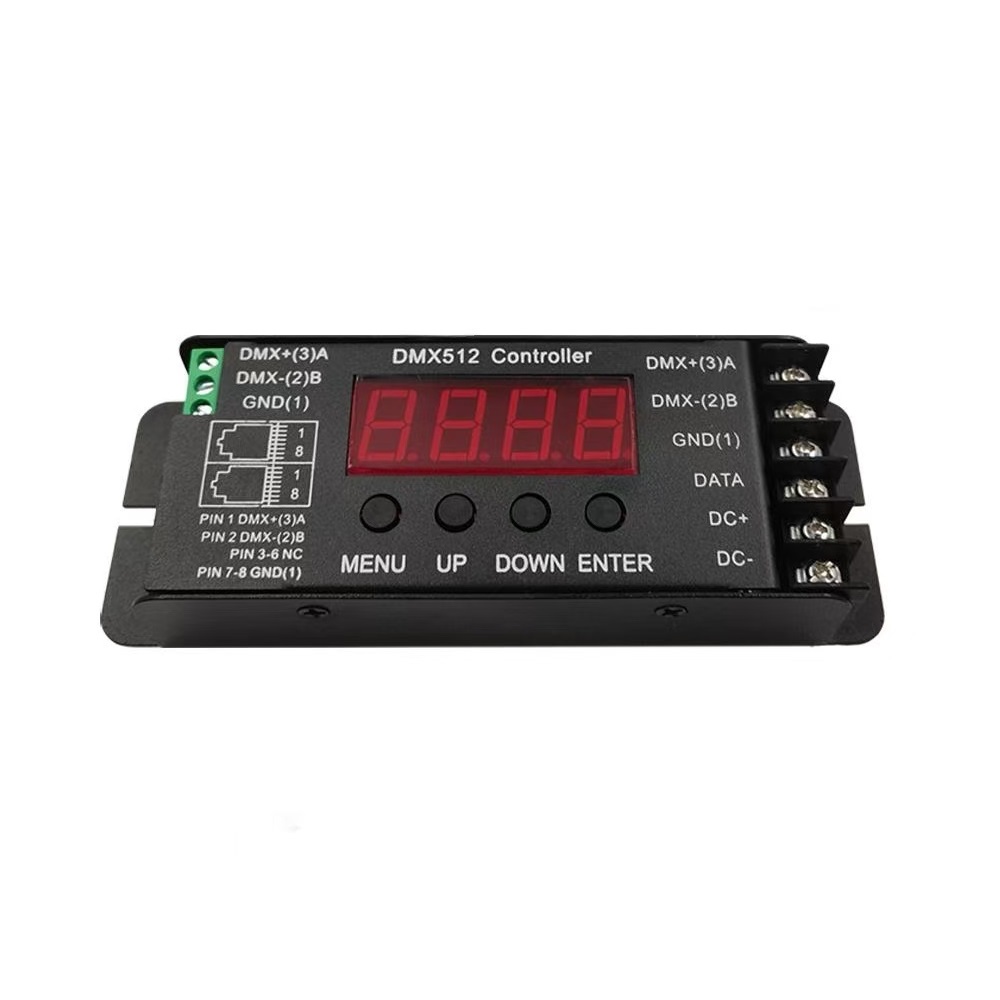

DMX to SPI Converter Decoder Controller DMX to SPI Pixel Decoder
Support all kinds TTL SPI /DMX IC chips, supports RGB pixel, RGBW pixels. Max 1024 pixels output.
Output Supports TTL SPI chips:WS2811, WS2812B, WS2812E, WS2814F, WS2815,TM1934, TM1814, TM1834, TM1824P,FW1935, FW1903PE, FW1934, FW1903P, FW1824, FW1834, FW1906,UCS1903, UCS2903, UCS2904B,MT16703, MT16704,SM16703p, LB1908, LB9838, GS8208, SK6812, SK5812, SK6813, GS8208
Output Supports DMX chips: DMX512, UCS512H6L, TM512AD, UCS512H4LB, UCS512B3, UCS512C4, TM512AC, UCS512CNB, Hi512DS, Hi512D5, UCS512H6L, SM18512SK, UCS512D, can write DMX address for these DMX chips.

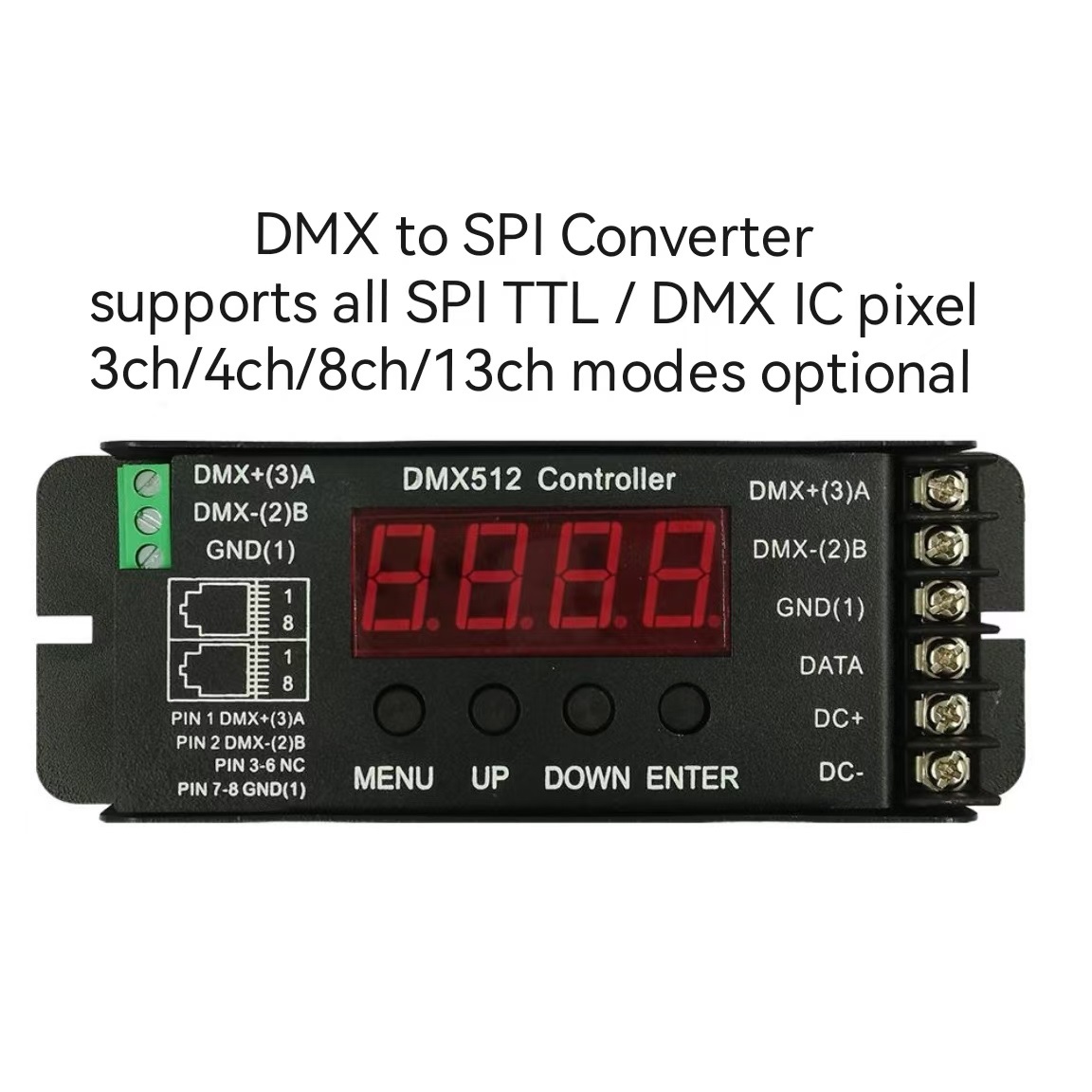

This DMX to SPI Decoder has 3ch/4ch/8ch/13ch modes optional.
Input: DC12-24V
The DMX to SPI decoder can convert DMX signals into SPI signals, enabling devices that could originally only receive SPI signals to be compatible with systems controlled using DMX.
For example, some specific models of light strips, pixel lights, etc. may use the SPI interface for control, but the lighting console or control system outputs DMX signals. At this time, the DMX to SPI decoder plays a key bridging role to achieve conversion and adaptation between different signals.
