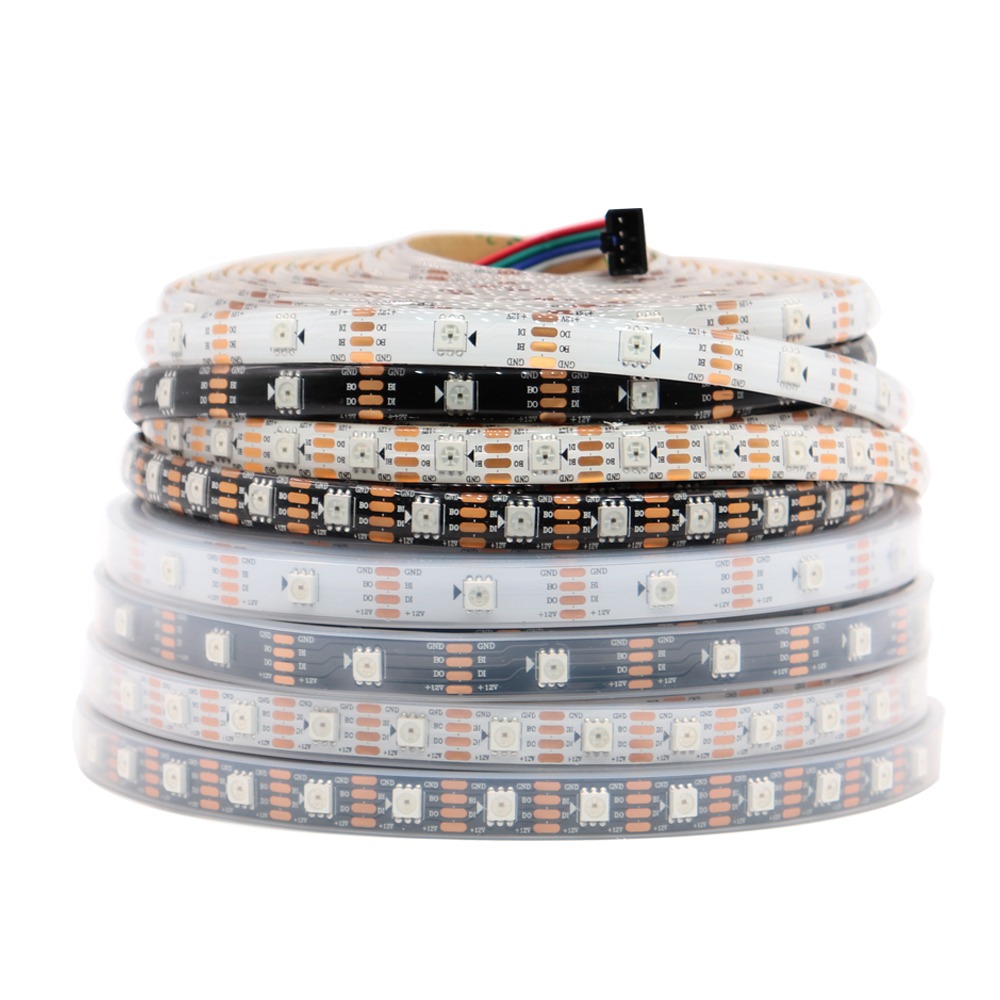

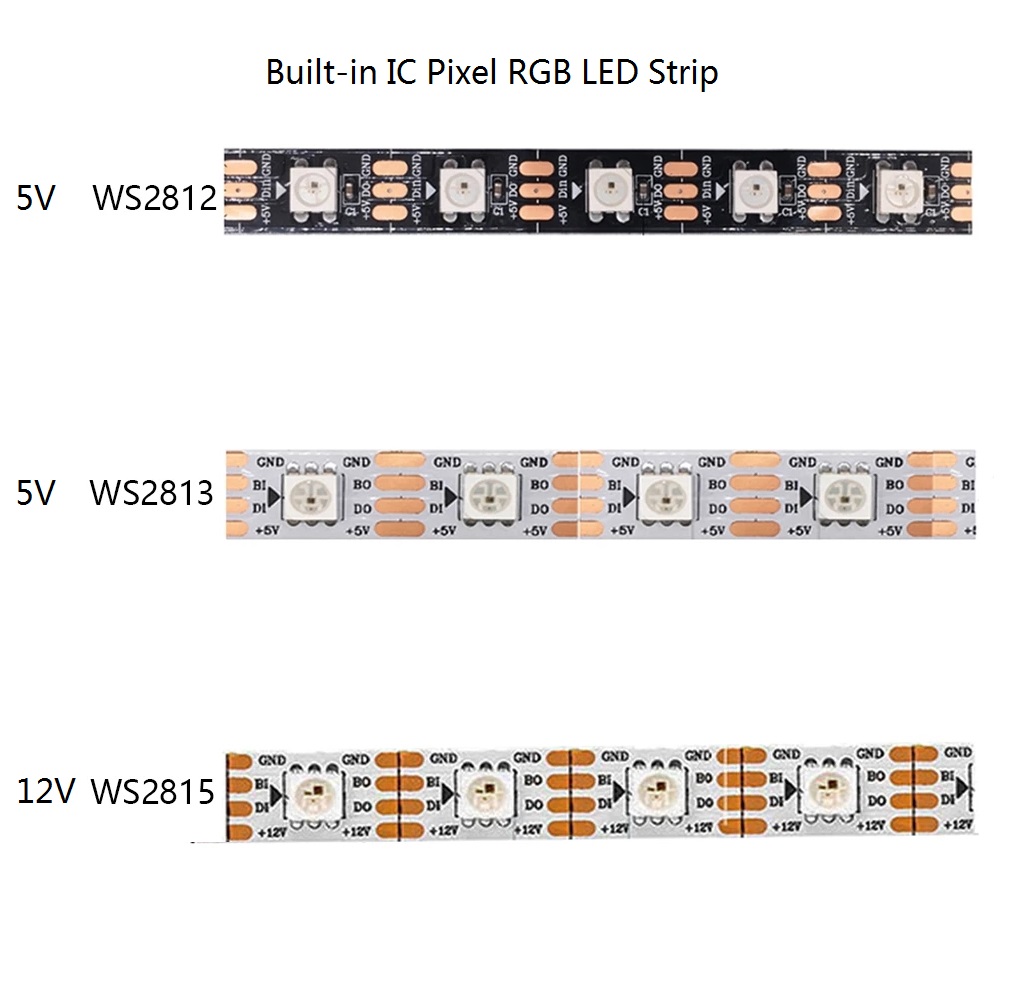

5V WS2812 WS2813 12V WS1815 Built-in IC Pixel RGB LED Strip

5V WS2812 WS2813  12V WS1815 Built-in IC Pixel RGB LED Strip

WS2812B is 5V built-in IC

WS2813 is 5V is built-in IC with break point continue (if one led breaks down, other leds can continue working).

WS2815 is 12V built-in IC with break point continue

2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.

3. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.

4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.

5. Do Not Bend Strip Sharply.

6. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.

7. 3-Pin JST Connector Wire is 20AWG.

WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.

Input Voltage: DC5V

Power: 30Leds/m—-7.2Watt/meter

60Leds/m—-14.4Watt/meter

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

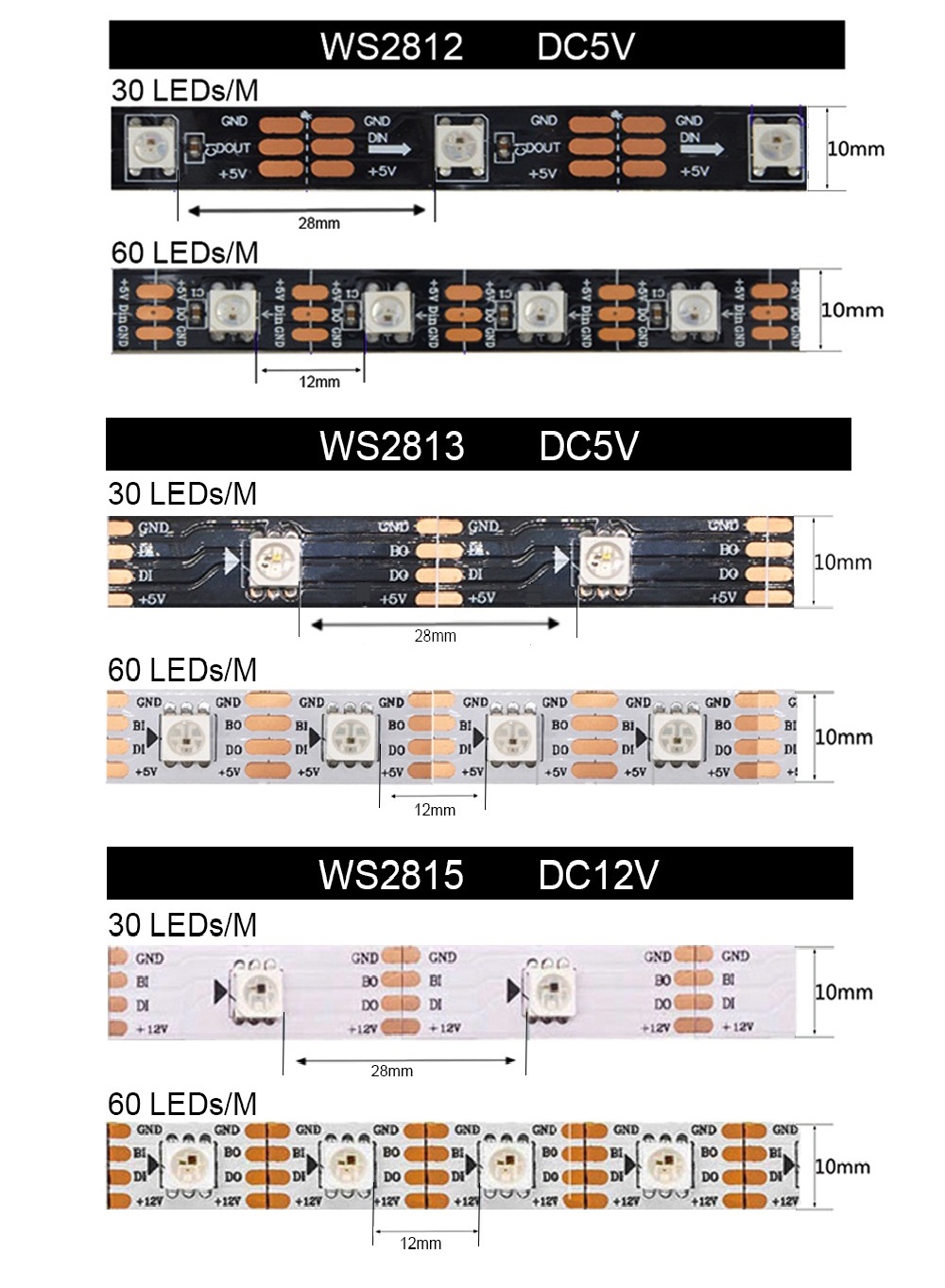

Pixels: 30/60/74/96/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Width: 30Leds/m—-10mm

60Leds/m—-10mm

FPC color: Black/White

Colors: Full Color RGB, Dream Color Changing

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

Power: 30 Leds/M — 7.2 Watt/Meter  /  60 Leds/M — 14.4 Watt/Meter

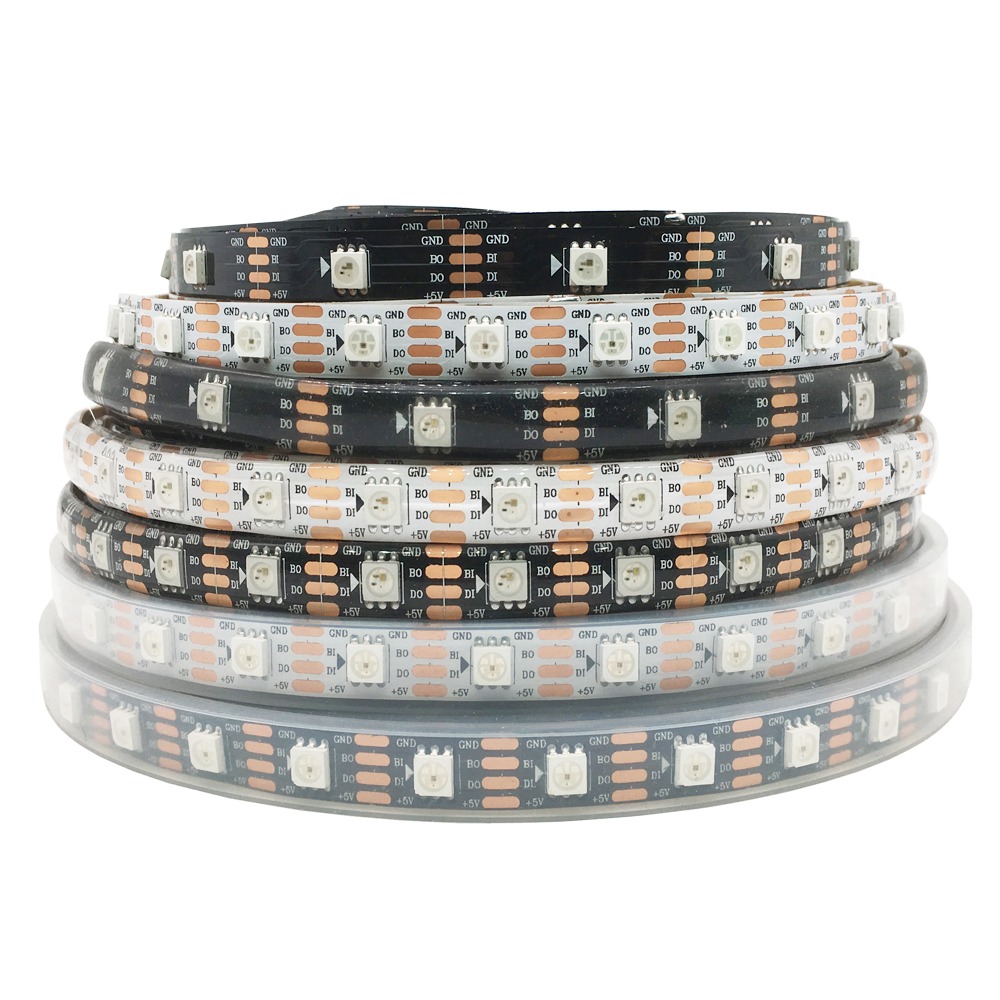

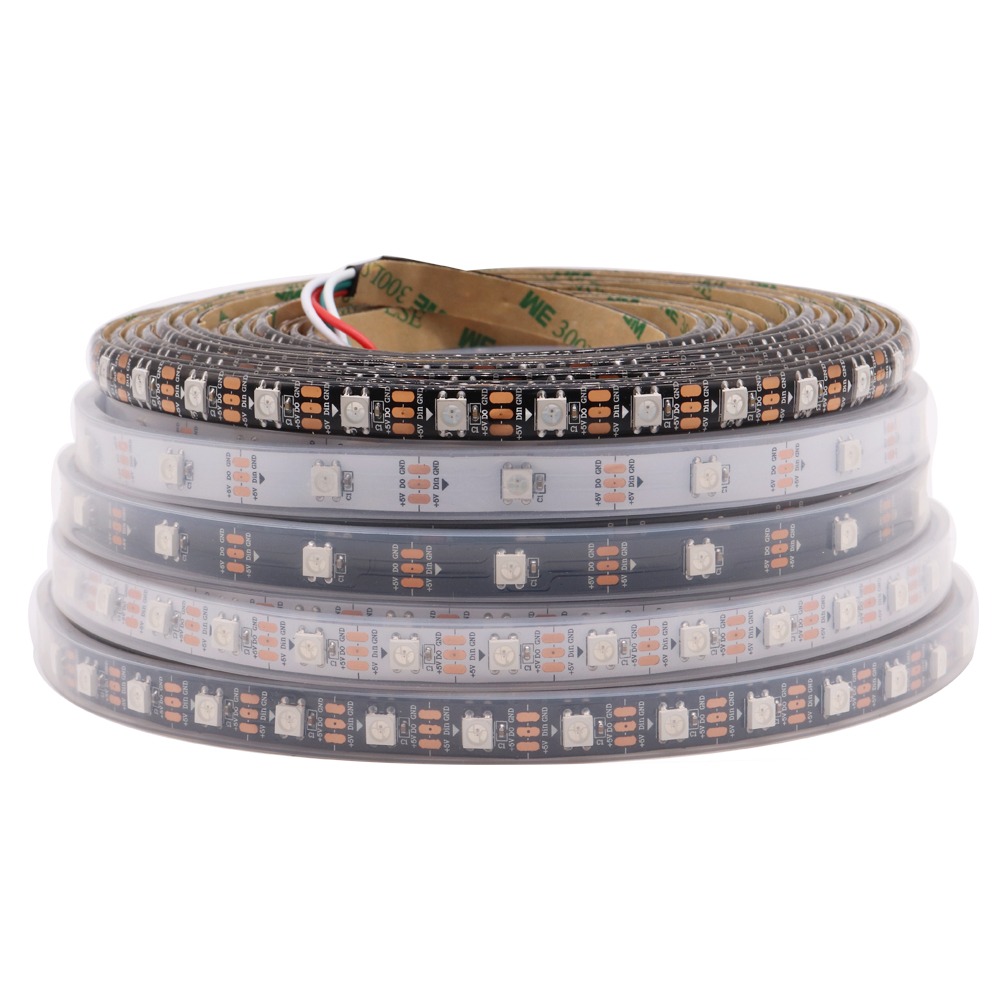

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC drives 1 led chip)

Pixels: 30Leds/60Leds

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: BLACK / White

FPC Width: 30 Leds/M — 10 MM  /  60 Leds/M — 10 MM

Protection Rate: IP30 Non-Waterproof  /  IP65 Waterproof in Silicon Coating  /  IP67 Waterproof in Silicon Tube

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector

Working Temperature: -40 – 70 °C

Storage Temperature: -50 – 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair  (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

Main feature:

One pixel damaged will not affect the other LEDs’working

Dual signal wires version, signal can jump to transfer

LED light source: WS2815 LEDs

Same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/WS2812 controllers

Input voltage:………….DC12V;

Power:…………………..30leds/m—-7.2watt/meter

…………………..60leds/m—-14.4watt/meter

LED resource:………..WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED:           ……………Each LED is separately controlled

IC Type: ………………..Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC:        ………………(1 IC drives 1 led chip);

Pixels:               ………30/60/meter;

Pitch: ……………………16.6mm(1000/64);

Grey scale: ……………256;

Bits/color:  ……………..8-bits/color;

FPC Width: :…………..30leds/m—-10mm

…………………..60leds/m—-10mm

FPC color:         ………White/Black PCB

Protection rate      ……IP30/ IP65 /IP67

Colors: …………………..Full color RGB, dream color changing;

Cuttable:…………………every LED is cuttable;

Package: ……………….in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature……………-40 ~ 70 °C

Storage temperature……………-50 ~ 80 °C

Source life                ……………50,000 hours

Connector                ……………4PIN Connector terminal pair

(Red: 12V power , green: Date line,  Blue: standby date line,Black: GND)
